4KW 4m Length Sheet Metal Roll Forming Machines With Computer Control System

    Buy cheap 4KW 4m Length Sheet Metal Roll Forming Machines With Computer Control System from wholesalers

    Buy cheap 4KW 4m Length Sheet Metal Roll Forming Machines With Computer Control System from wholesalers
    • Buy cheap 4KW 4m Length Sheet Metal Roll Forming Machines With Computer Control System from wholesalers
    • Buy cheap 4KW 4m Length Sheet Metal Roll Forming Machines With Computer Control System from wholesalers

    4KW 4m Length Sheet Metal Roll Forming Machines With Computer Control System

    Ask Lasest Price
    Certification : BV,SGS, CE,ISO9001
    Supply Ability : 30 SETS / MONTH
    Delivery Time : 30 Working days
    Price : Negotiation
    • Product Details
    • Company Profile

    4KW 4m Length Sheet Metal Roll Forming Machines With Computer Control System

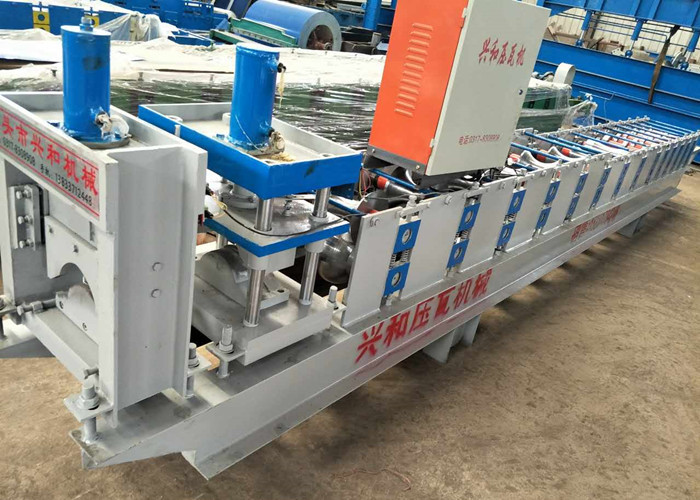

    312 Automatic Galvanized Ridge cap zinc roofing sheet roll forming machine


    Main Accessories

    1Decoiler(manual or hydraulic for options)1 set
    2Feeding device1 set
    3Main Forming Machine1 set
    4Hydraulic step press devicewithout
    5Hydraulic cutting device1 set
    6Hydraulic Station1 set
    7PLC computer control system1 set
    84m Run Out Table1 set

    Main Technicial Parameter

    No.main parameter of 312 color steel roof ridge cap roll forming machine
    1Suitable to processColor steel plate
    2Width of the platemm
    3Rollers13 rows
    4Dimensions7.6*1.43*1.55m(L*W*H)
    5Power4+4kw
    6Thickness of the plate0.3-0.8mm
    7Productivity8-12m/min
    8Diameter of the rollerΦ80mm
    9WeightAbout 4.0 T
    10Voltage380V 50Hz 3phases
    11Rolling materialCarbon Steel 45#
    12Material of the cutting plateCr12
    13Processing precisionWithin 1.00mm
    14Control systemPLC control

    Best service
    1.We have professional team to make different kinds of roll forming machines for our customers,
    from designing, processing,assembling, debugging, delivery.
    2.We can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country.
    3.You can send your men to our factory. we will teach them how to operate the machine without training charges.
    4.Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.
    5.Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support.
    If there is any problems happened to the machine, we will provide solution at once.
    Hope we could establish win-win business relations in the soon future!
