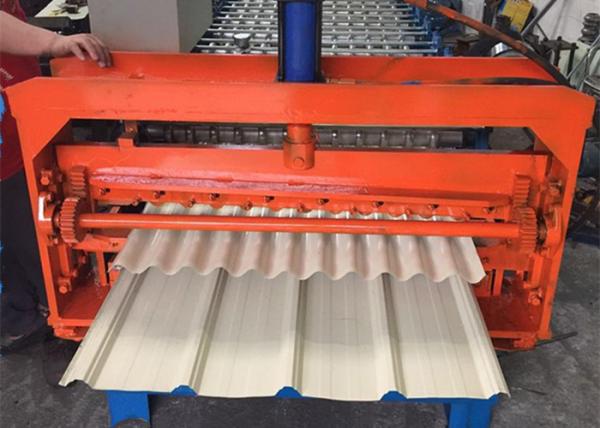

840/850 Roofing Color Glazed Tile Profile / Roof Panel Double Layer Cold Roll Forming Machine
Product Description
Thickness of material sheet: | 0.3mm-0.8mm |
Width of material coils: | 1000 mm |
Effective width: | top layer: 850mm lower layer : 840mm |
Working speed: | 8-12m/min |
Rollers step: | top layer: 11steps lower layer: 13steps |
Material of rollers: | 45# steel, plated with hard chrome 0.05mm |
Material of shafts: | 45# steel |
Diameter of shafts: | Top layer:¢70mm Lower layer:¢80mm |
Material of cutter: | Material of cutter: Cr12 quenching, HRC58-60 |
Main motor power: | 5.5KW |
Hydraulic station motor power: | 4.0KW |
Hydraulic station pressure: | 8-12 Mpa |
Frame of machine: | welding with 350 H steel |
Thickness of side panel: | 16mm |
Controlling system: | adopts industrial computer PLC frequency controlling |
Machine size: | 8000*1600*1300(mm) |
Working flow
Payment terms: 30% TT deposite, 70% TT balance before loading container
Delivery time: Within 40 days since receiving deposit.
Guarantee: 12 months
Supplying components of complete machine
NO. | Description | Quantity (set) | Remark |
1 | 5Tmanual decoiler | 1 | As one complete part |
2 | Guiding device | 1 | |
3 | Pre-cutter | 1 | |
4 | Forming system | 1 | |
5 | Transmission system | 1 | |
6 | Hydraulic guillotine | 2 | |
7 | Support table | 2 | |
8 | Hydraulic station | 1 | |
9 | Control box | 1 | |
10 | Spare parts and tools | 1 | As attaching list |
![]() |
