European Style Double layer machine Partial Arc Color Steel Roof
Roll Forming glazed tile machine
Best Quality Double Layer Roof tile Roll Forming Machine
PACKAGE: NUDE PACKAGING IN 1*40 GP CONTAINER
DELIVERY TIME: 30 WORKING DAYS AFTER RECEIVED THE DEPOSIT
Double Layer Roll Forming Machine Uncoiler System
Usage: It is used to support the steel coil and uncoil it in a
turnable way.
Passive uncoil pulled by roll forming system
Loading capacity: 5 T
Uncoiling width: 1250 mm
Inner diameter: 450-550 mm

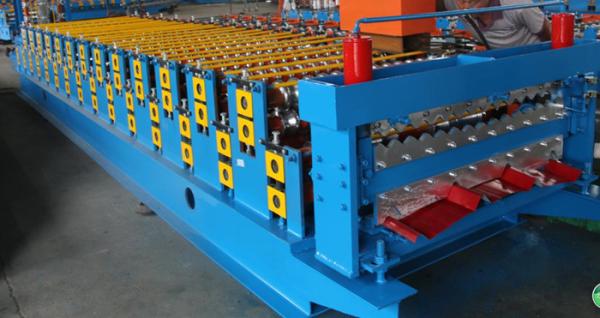

Double Layer Roll Forming Machine
Usage: In order to keep the product shape and precision, adopts
welded sheet structure, motor reducer drive, chain
transmission,roller was chromed which can keep the molding plate
surface smooth and not easy to be marked when it is being stamped.
Length of the main part: About 8500 1650 1500 mm (L*W*H)
Weight of main part: 4.0 tons
Voltage : 380 V 50 HZ 3 PHASE(As customer's need)
Roller fixer : Middle plate
Frame : 350 H steel welded
Drive mode: Chain
Material of rollers: 45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ 80 mm
Number of rollers : 13 rollers(Up layer)15 rollers(Down layer)
Main power: 4.0kw
Double Layer Roll Forming Machine Working Flow:
Double Layer Roll Forming Machine Shearing Mechanism
Feature : Ensure stability, precision and cutting speed
It is used to make the step , the glazed tile's final formed.
It adopts the hydraulic drive and automatic location to decide the
dimension and cut the target products. Function : Automatic cutting
controlled by PLC
Material of blades : Cr 12 quenched
Power supply : Hydraulic power
Components: It contains one set of blade, one hydraulic tank and
one cutter machine.
Double Layer Roll Forming Machine Hydraulic Station
It is controlled by gear wheel oil pump. After filling the
hydraulic oil into the hydraulic oil tank ,the pump drive the
cutter machine to begin the cutting job.
Hydraulic motor Power: 4 kw
Hydraulic oil: 46# hydraulic oil
Volume: 30 L
Components: The system includes a set of hydraulic tank , a set of
hydraulic oil pump, two hydraulic pipes. and two sets of
electromagnetism valves.
Double Layer Roll Forming Machine Electric Control System
1. Adopted PLC , transducer, touch panel to ensure high speed with
stability, precision and lifetime.
2. Voltage: 380V 50 HZ 3 PHASE (As customer's need)
3. Language: English and Chinese
4. Automatic length measurement
5. Automatic quantity measurement
6. Length Tolerance: 3 m±1.5 mm
7. Length inaccuracy can be amended easily.
8. Unit of length: millimeter (switched on the control panel)
9. Computer operating panel: touching screen and button together.
Double Layer Roll Forming Machine Warranty
1. One year warranty, whole life technical support.
2. Installation & adjustment : We can take a video for the customer
and the customer can also come to our factory, we can train
customer how to install and adjust the machine.
3. Oversea service: the buyer should charge of visa, return ticket,
food and accommodation overseas and USD50/person/day salary.
