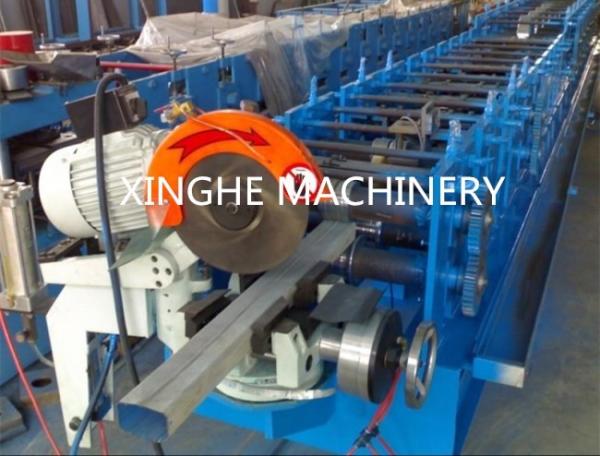

    Downspout Pipe Roll Forming Machine PLC Control And Hydraulic Station

    Ask Lasest Price
    Brand Name : XINGHE
    Model Number : XH-GUTTER
    Certification : CE,ISO,TUV,BV
    Price : 7000-15000SUD
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 SETS / MONTH
    Delivery Time : 20 Working days
    • Product Details
    • Company Profile

    Downspout Pipe Roll Forming Machine PLC Control And Hydraulic Station

    Hot Sale! PLC Control and Hydraulic Station/Passed CE and ISO/ downspout pipe roll forming machine



    Advantage of gutter roll forming machine

    The gutter roll forming machine is more durable than the tranditional ppc pipe, and not easy to aging. It will make the project more integrate, and help enhancing the image of all project.

    Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

    The line consists of decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system, control system. The roller shutter which made by this machine have neat external appearance, even ripples, high utilization and strong strength.


    The Chart of Process flow
    Decoiling→ feeding→ pressing and forming the shape→ measure the length→ cutting→ receiving the plates
    Equipment sketch map:


    Main technical parameters

    No.main parameter of gutter roll forming machine
    1Suitable to processColor steel plate
    2Width of the plate410mm
    3Rollers12rows
    4Dimensions7.2*1.2*1.5m
    5Power4+3kw
    6Thickness of the plate0.3-0.8mm
    7Productivity8-12m/min
    8Diameter of the rollerΦ70mm
    9WeightAbout 1.0T
    10Voltage380V 50Hz 3phases
    11Material of the cutting plateCr12
    12Hydraulic40#
    13Processing precisionWithin 1.00mm
    14Control systemPLC control

    The equipment includes:
    Roll forming machine,
    1 set
    Hydraulic cutter
    1 set
    Electrical control system
    1 set
    Hydraulic system
    1 set
    Hydraulic system
    2 PC 1m*1m
    Manual decoiler
    1 set Max loading 5Ton

    Downspout Pipe Roll Forming Machine PLC Control And Hydraulic Station
