Roofing Glazed Step Tiles Roll Forming Machinery For IBR And Corrugated Roof Sheet

    Buy cheap Roofing Glazed Step Tiles Roll Forming Machinery For IBR And Corrugated Roof Sheet from wholesalers

    Buy cheap Roofing Glazed Step Tiles Roll Forming Machinery For IBR And Corrugated Roof Sheet from wholesalers
    • Buy cheap Roofing Glazed Step Tiles Roll Forming Machinery For IBR And Corrugated Roof Sheet from wholesalers

    Roofing Glazed Step Tiles Roll Forming Machinery For IBR And Corrugated Roof Sheet

    Ask Lasest Price
    Brand Name : XINGHE
    Model Number : XH828
    Certification : CE,ISO,TUV,BV
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 SETS / MONTH
    Delivery Time : 20 Working days
    • Product Details
    • Company Profile

    Roofing Glazed Step Tiles Roll Forming Machinery For IBR And Corrugated Roof Sheet

    Roll forming machinery for IBR and corrugated roof sheet , roofing glazed step tiles roll forming machine


    Product Description
    NOMain parameter of galvanized roofing sheet roll forming machine
    1.Suitable to processColor steel sheet ,galvanized steel sheet, aluminium sheet
    2.Width of the plate1000/828mm
    3.Thickness of the plate0.3-0.8mm
    4.DecoilerManual one, can load 5 tons raw material
    5.Rollers for forming16 rows
    6.Diameter of the roller80mm
    7.Rolling material45#Steel Chrome Plated
    8.Main motor power5.5kw
    9.Productivity0-6m/min
    10.Cutting methodHydraulic mould cutting
    11.Material of the cutting bladeCr12
    12.Hydraulic cutting power5.5kw
    13.Processing precisionWithin 1.00mm
    14.Control systemDelta PLC control
    16.Main structure of the machine300 H steel
    17.Weight5T
    18.Dimensions6.5*1.5*1.3m
    19.Voltage380V 50Hz 3phases
    20.CertificateCE/ISO9001
    21.CustomAccording to customer's requirement

    Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.

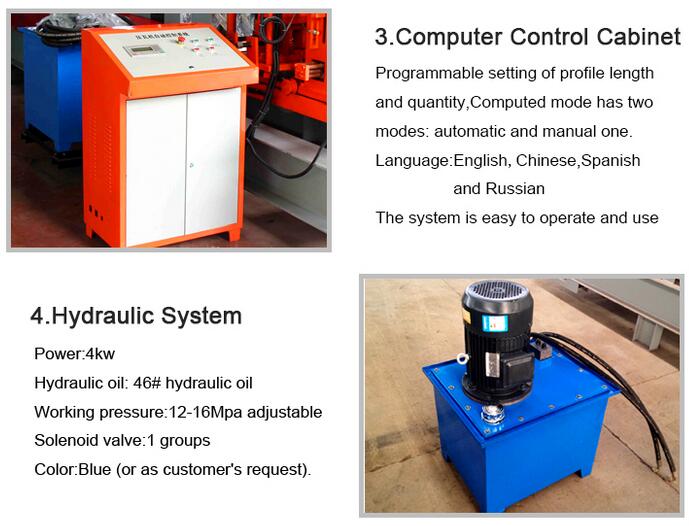

    Spec of Components

    Roll forming machinery for ibr and corrugated roof sheet , roofing glazed step tiles roll forming machine

    Roll forming machinery for ibr and corrugated roof sheet , roofing glazed step tiles roll forming machine

    Roll forming machinery for ibr and corrugated roof sheet , roofing glazed step tiles roll forming machine

    Product Show

    Roll forming machinery for ibr and corrugated roof sheet , roofing glazed step tiles roll forming machine

    Roll forming machinery for ibr and corrugated roof sheet , roofing glazed step tiles roll forming machine
