    PPGI Roof Panel Roll Forming Machine , Corrugated Sheet Roll Forming Machine

    Ask Lasest Price
    Certification : BV,SGS, CE,ISO9001
    Payment Terms : L/C, T/T
    Supply Ability : 30 SETS / MONTH
    Delivery Time : 20 Working days
    Price : Negotiation
    • Product Details
    • Company Profile

    PPGI Roof Panel Roll Forming Machine , Corrugated Sheet Roll Forming Machine

    IBR Roof Panel Machine 1050 Trapezoid/Corrugated Steel Roofing Sheet Roll Forming Mahcine


    Machine parameter


    No.Main parameter of 1050 trapezoidal ibr profile metal sheet roof panel roll forming machine
    1Suitable to processColor steel plate
    2Width of the plate1000mm
    3Rollers11 rows
    4Dimensions6.5*1.5*1.2m
    5Power4.0+4.0kw
    6Thickness of the plate0.3-0.8mm
    7Productivity8-12m/min
    8Diameter of the rollerΦ75mm
    9WeightAbout 2.0 T
    10Voltage380V 50Hz 3phases
    11Rolling materialCarbon Steel 45#
    12Material of the cutting plateCr12
    13Processing precisionWithin 1.00mm
    14Control systemPLC control

    Main Accessories of 1050 trapezoidal ibr profile metal sheet roof panel roll forming machine:

    1Decoiler(manual or hydraulic for options)1 set
    2Feeding device1 set
    3Main Forming Machine1 set
    4Hydraulic cutting device1 set
    5Hydraulic Station1 set
    6PLC computer control system1 set
    74m Run Out Table1 set

    FAQ

    1. Does one machine can only produce one style panel profile?
    Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

    2. Do you have after sales support?
    Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

    3. How to visit your company?
    a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour), then we can pick up you.

    b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

    4. How to get a quotation?
    a. Give me the profile drawing and thickness, this is the important.
    b. Other specific requirements are welcome, such as the speed, power and voltage you want.

    5. What can you do if the machine broken?
    Our machine's warranty period is 12months! If the broken parts can't repair, we can send the new parts replace the broken parts free. If after warranty period,we can through negotiation for to solve the problems, and we supply the technical support for the whole life of the equipment.

    6. Can you be responsible for transport?
    Yes, please tell me the destination port or address. We have rich experience in transport.

    7. You are trade company or factory?
    We are factory.

    8. How long the machine could be made?
    Normally speaking, common roof profile roll forming machine could be made within 45 working days.
    If you need machines in a hurry, we can make it for you less than a month.

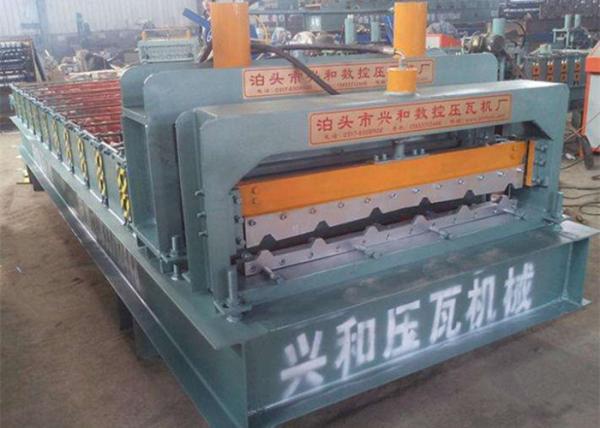

    Machine show

    PPGI Roof Panel Roll Forming Machine , Corrugated Sheet Roll Forming Machine
