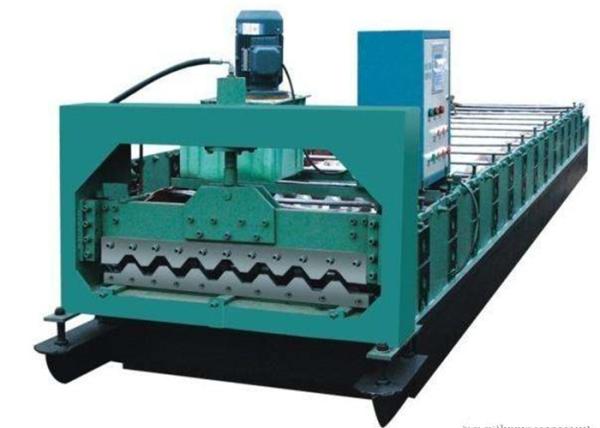

    Colored Steel Roof Panel Roll Forming Machine Producing 750mm Width Tiles

    Colored Steel 750 Trapezoidal Roof Panel Roll Forming Machine


    Roll forming machine working flow:

    Decoiling → Feeding & Guiding → Roll forming → Cutting → Output the finished production


    Machine parameter:

    ItemParameter

    Suitable

    Material

    TypePPGI/GI
    Thickness0.3-0.8mm
    Wide1000mm/1200mm/1250mm
    Yield Strength230~550MPA

    Product

    Specs

    Profile750 profile, accept customization
    Effective width750mm
    LengthAny length

    Power

    Specs

    Voltage380V/3PH/50HZ, accept customization
    Main Motor4kw
    Hydraulic motor4kw
    Hydraulic pressure10-12MPa

    Machine

    Specs

    Forming steps number13 steps
    Shaft Material45 # steel tempered,Φ75mm
    Roller Material45 # steel chrome coated
    Main machine body350# H steel welded
    TransmissionChain and Sprocket, chain size 1 inch
    Wall Plate16mm thickness
    Blade materialCr12 mould steel with quenched treatment 60-62°
    Forming Speed8-12m/min for standard solution
    Cutting systemLength-set cutting after roll formed
    Control SystemDelta PLC and Inverter
    Manual decoiler

    Max width of coiling: 1000~1450mm

    Max weight of loading: 5000kg

    Output Supporter2 Pcs Simple Supporter
    Dimension of the machine8m×1.5mm×1.2m
    Weight of the machine4.5 ton

    RFQ:

    1) Q: Do you have after sales support?

    A: Yes, we supply technical support for all life and we also have technicians available across the world.


    2) Q: How do your machines compare with other big companies in this market?

    A: Our machines don’t have glamorous appearance, but they are strong and durable, working life is more than 10 years.


    3) Q: How does your factory ensure the good quality?
    A: Quality is our business life. Except the quality materials which the eye could see, the most important quality is the final products beautiful and have accurate datas. We will draw the drawing base on customers’ profile and requirement, and after processing the rollers, we will check and test the rollers and machine, to ensure the final products are the same with customers’ profiles. Once we find inacceptable tolerance, we must solve it and never allow it to exist in customers’ workshop.


    4) Q: Do you sell standard machines or accept customization?

    A: We sell both standard machines and customized machines. In fact, most of customers have their own requirements, so most machines are customized.


    5) Q: Can you make the machine according to my design or proto type?
    A: Yes. You only need to supply your profile or design picture, we will produce the machines according to your basic request.


    6)Q: How can we be assured that you will deliver us quality machine with spare parts?
    A:1. Customers could send the technical people to our factory to check the quality.

    2. We can send the technicians to the buyer`s factory for the installation and training of the machine.

    3. Good aftersales-service, its free of charge during the warranty period.


    7) Q:What can you do if the machine broken?

    A:Our machine's warranty period is 13months,if the broken parts can't repair,we can send the new parts replace the broken parts freely. If after warranty period, we will supply technical support to solve the problems, and we supply the technical support for the whole life of the equipment.


    8) Q:How to visit our company:

    A:Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you at the station.


    9) Q:Why your price is higher?

    A:For the same profile, with different technical parameters, the machines will completely different. We ensure to arrange good quality materials and components, precise drawings, strict quality controlling, to ensure the good final quality, to keep the machine run well in customers’ workshop, with no problem, to help our customers gain more business value.
