1. Processes and components

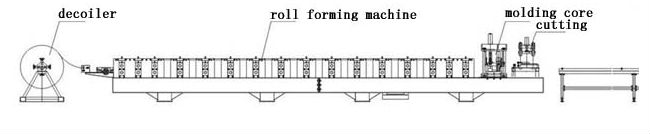

Processes: Man-made uncoiler—Roll forming machine—PLC

system—Hydraulic system—mold pressing machine-Blade-Receiving table

2. Components of line:

3. Function and structure: Man-made uncoiler

Application and technical parameter :

Inner diameter:ø500mm

Outer diameter: ø 1100mm

Width:1000 mm

Loading weight:≤5 T

4. Main machine for roll forming

Application and technical parameter:

Pass:16 passes

Shaft diameter:ø70mm

Roller material:45 steel(Cr coating)

Total power:7.5+5.5 KW,depend on different designs

5. Control system:
Function and operation:Control the starting,operation and stopping of the complete line,including distribution section,
operation table, counting instrument. Use PLC to control,set and adjust the length. Both man-made and auto operations:on the man-made condition,each equipment can operated by switch;on the auto condition,only circulating stop and rapid stop switch.

6. Hydraulic system

Function: apply power for cutting machine

7. Blade

Function and structure: cutting the forming sheet

Application and technical parameter:Blade material: Cr12 and Harding treatment

Max thickness: 0.3-0.8mm

8. Payment: 20%deposit, full payment before shipment.

9. Delivery: 30 days after getting deposit.

10. Guarantee:

In correct operation and maintenance, the machine is two years guarantee since leaving the seller’s factory.

11. Installation:

If buyer need, the seller will send one or two technician to the buyer’s factory to install & testing the machine, the buyer will assist the seller’s technician to get the visa and pay for the two-way flight tickets and local accommodation, visa cost. by the way , buyer pay 100USD/day for technician extra.
