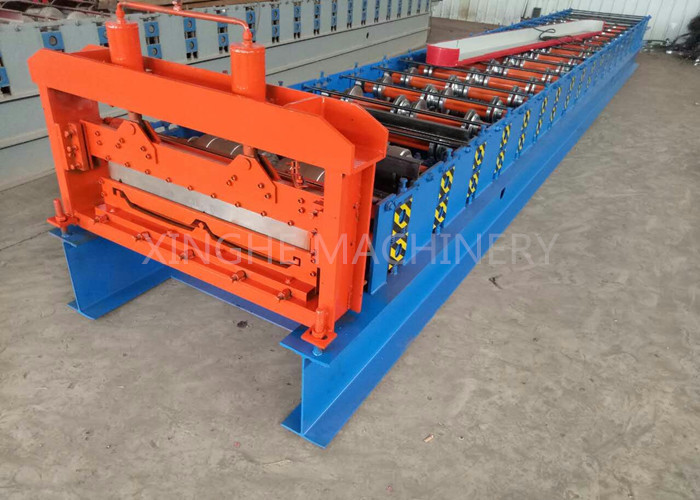

JCH 820 Automatic Roll Forming Machine Steel Structure Metal Sheet Roll Forming Machine Roof Tile Making Machine

Parameters

PS: the above are for reference; customized design is provided.

Working Flow

Process

* The process of roll forming is one of the simpler manufacturing processes.

1. It typically begins with a large coil of sheet metal, between 1 in. and 20in. in width, and 0.004 in. and 0.125 in. thick, supported on an uncoiler.

2. The strip is fed through an entry guide to properly align the material as it passes through the rolls of the mill, each set of rolls forming a bend until the material reaches its desired shape.

3. Roll sets are typically mounted one over the other on a pair of horizontal parallel shafts supported by a stand(s).

4. Side rolls and cluster rolls may also be used to provide greater precision and flexibility and to limit stresses on the material.

5. The shaped strips can be cut to length ahead of a roll forming mill, between mills, or at the end of the roll forming line.

Machine shows

Botou Xinghe Roll Forming Machinery Co.,Ltd is a professional manufacturer located in Hebei province China. We are specialized in manufacturing different kinds of cold roll forming machine and automatic production line.
Our main products include:
Roll forming machine: Wall steel panel roll forming machine
Roof steel tile roll forming machine
Corrugated steel tile roll forming machine
Color coated steel glazed tile roll forming machine
JCH roll forming machine
Double deck roll forming machine
C/Z type steel purlin roll forming machine
Color steel sandwich panel forming machine
Steel floor deck roll forming machine
Highway guardrail roll forming machine
Shutter door roll forming machine
Downpipe roll forming machine
Decoiler/ Recoiler
Bending/Shearing/Slitter/Leveling machine
Other cold roll forming machine as per your special requests.

With the mature domestic market, we also pay much attention and energy on the oversea market. So far we have our customers in more than 20 countries in the Middle East, Southeast Asia, India, Russia, Africa, Middle Asia, etc.

Your precious interest and inquiry will be highly appreciated.
We are always looking forward to cooperating for mutual benefit in the future.
