    32KW Sandwich Panel Roll Forming Machine With 0 - 3.8m / Min Working Speed

    Ask Lasest Price
    Certification : BV,SGS, CE,ISO9001
    Payment Terms : L/C, T/T
    Supply Ability : 30 SETS / MONTH
    Delivery Time : 20 Working days
    Price : Negotiation
    • Product Details
    • Company Profile

    32KW Sandwich Panel Roll Forming Machine With 0 - 3.8m / Min Working Speed

    Rock Wool / EPS Sandwich Panel Roll Forming Machine / Roof Sheet Production Line


    Main technical parameter

    NO.Main technical parameter
    1

    Main components

    Corrugated unit,composite host unit,finished cutting group,decoiler,conveyor frame,Auxiliary equipment
    2Installation dimensions40m*2.3m*2.5m
    3Maximum working width(color steel)1000-1200mm
    4Maximum working thickness50mm-250mm
    5Color steel thickness0.2-0.6mm
    6Work speed0-3.8m/min
    7EPS thicknessNot less than 50mm
    8Total power32KW
    9Weight15-16tons
    10Main molding press machine size9525*1450*1070mm
    11Main molding press machine glue roller number

    EPS sandwich roll forming machine:26-32 row

    Rock wool sandwich roll forming machine:17 row

    12The main corrugated molding machine shaft number

    EPS sandwich roll forming machine:9-11 row

    Rock wool sandwich roll forming machine:6 row

    13Big framejoist steel and A3 steel plate welding
    14rollerHard chromium plating processing
    15Transmission deviceBy motor cycloidal reducer, chain wheel, chaincomposition
    16

    Composite host

    Contains the main frame,decoiler,Well glue agency,Correction device, electric heating devices, vacuum device and electric control device
    17Composite host frameA total of three pairs of up and down roller frame
    18Finished cutting partFixed length---compaction---Random motion cutting---loosen---reset
    19control modeSemi-automatic and fully automatic
    20

    Auxiliary equipment

    Rock wool slitting machine,color steel slitting machine,corrugated gusset plate forming machine, sealing strip molding press machine
    21voltage380v 50hz 3ph
    22control modePLC ( Delta)
    23man-machine interfaceMT506(TAIWAN)
    24test the encoderOmron
    25Electronic control partsMade in china
    26converter0.4kw(made in china)

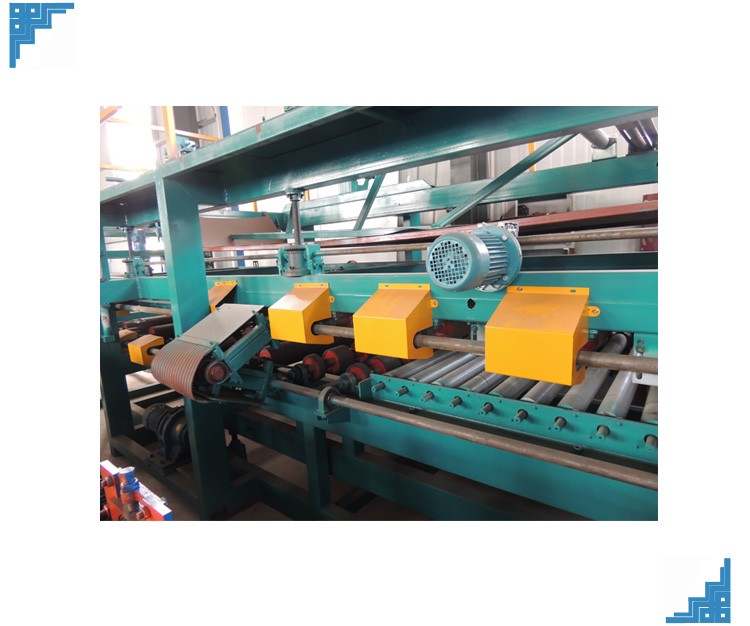

    Machine shows

    eps zlock sandwich panel roll forming machine lock forming machine by bello lin

    eps zlock sandwich panel roll forming machine lock forming machine by bello lin

    eps zlock sandwich panel roll forming machine lock forming machine by bello lin
