    Waterproof Metal Roof Forming Machine With Automatic Hydyaulic Cutting Machine

    1100 Automatic Hydraulic Cutting Roof Glazed Tile Roll Forming Machine / Buiding Roof Tile Making Machine


    Introducation

    Machine consist of uncoiler and its base, coil sheet guiding equipment, roll forming system, post cutting equipment, pressing equipment, post-cutting system,hydraulic station, controlling system, supporter table.


    Machine Feature:

    1.Precise forming

    2. High-solid forming stand guarantees the goods and uniform high quality of final productd

    3. The operation automatically minimizes the tolerance of cutting length


    Products Feature:

    1. A stylish and attractive design, giving the apperance of a traditional roof tile.

    2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.

    3.The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa,civil construction etc.


    Flow chart:

    Decoilling the sheet--sheet guilding --roll forming--measure length--cutting the panel--panel to the supporter


    Botou Kexinda automatic 1100 glazed tile roll forming machine cold making machine tile making machine


    New Type 1100 Glazed Tile Roll Forming Machine

    ConfigurationsManual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
    Control SystemPLC Panasonic Inverter
    Main Frame300mm H-Beam
    Main Power7.5 kw
    Pump Power5.5 kw
    Power Supply380V, 3-Phase,50Hz
    Forming Speed8-10m/min
    Roll Station16 stands
    Roller Diameter80mm
    Hydraulic Pressure10-12MPa
    Forming Size1100mm
    Feeding Thickness0.3-0.8mm
    Feeding Width1250mm
    Backboard Thickness14mm
    Chain Size33mm
    Cutter StandardCr12
    Roller StandardCr12
    Cr-Plating Size0.05mm
    Overall Size8700×1800×1500mm
    Total Weight7.5T

    All technical parameters can be changed according to user's need.

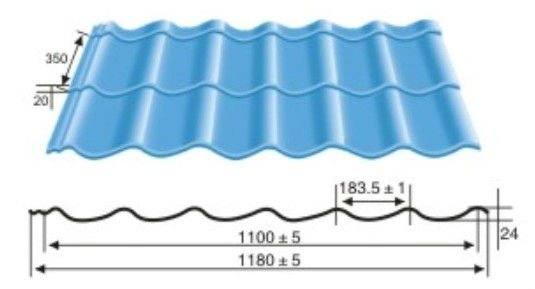

    Profile drawing:

    Botou Kexinda automatic 1100 glazed tile roll forming machine cold making machine tile making machine

    Waterproof Metal Roof Forming Machine With Automatic Hydyaulic Cutting MachineWaterproof Metal Roof Forming Machine With Automatic Hydyaulic Cutting Machine

    Our Services

    According to customer requirements, Custom roll forming machine.we can help you to supply the machine and also the material, such as color steel sheet, galvanized steel and alumium sheet.
    Guarantee : 12-24 months guarantee for the machine.
    We send technician to your country to fix the machine.
    All life door to door service
    The buyer should bear all the cost including: visa , Roundtrip tickets and suitable accommodation, also buyer should pay salary .
