    840mm Long Span Roofing Sheet Roll Forming Machine With Metal Bending Machine

    Ask Lasest Price
    Certification : BV,SGS, CE,ISO9001
    Payment Terms : L/C, T/T
    Supply Ability : 30 SETS / MONTH
    Delivery Time : 20 Working days
    Price : Negotiation
    • Product Details
    • Company Profile

    840mm Long Span Roofing Sheet Roll Forming Machine With Metal Bending Machine

    840 Long Span Roofing Sheet / Single Sheet Roof Sheet Glazed Roll Forming Machine


    Working Flow

    840mm Long Span Roofing Sheet Roll Forming Machine With Metal Bending Machine

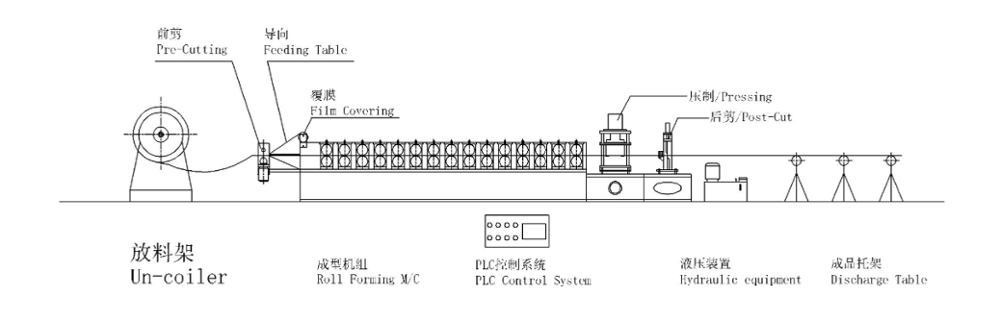

    It is flow chart of glazed roll forming machine. Focus on cutting system. We find that there is press mold behind cutting system. It is using for press the steps. That is different with roof tile roll forming machine. So the speed of glazed roll forming machine can not reach 8-12m/min. And capacity is 3-4m/min. If you need faster, servo motor system can reach 4-8m/min. company can design and produce servo motor system glazed roll forming machine for you.Europe hot sale 840 glazed tile tile bamboo roll forming machine


    Machine parameter

    manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system-- post cut-- output table

    Article No.Item NameSpecification
    1Width of feeding material1000mm coil sheet
    2Thickness of feeding material0.3mm-0.8mm coil sheet
    3Roller station11stations
    4Shaft Diameter75-95mm
    5Productivity3-4m/min
    6Rollers' material45# steel forge
    7Shaft material45# steel
    8Weight2.5 ton
    9length6.5m
    10Voltage380V 50Hz 3phases
    11ControlPLC
    12Decoiler5Tons
    13Motor4.0kw
    14Driving wayChain transmission
    15Chain size0.6 inch-2 inch
    16Cutting systemHydraulic cutter
