Automatic Metal Deck Floor Deck Steel Roll Forming Machine
Main Features
1) Simple structure in linear type ,easy in installation and
maintation.
2) Adopting advanced world famous brand components in pneumatic
parts ,electric parts and operation parts
3) High pressure double crank to control the die opening and
closing.
4) Running in a high automatization and intellectualization,no
pollution
5) Apply a linker to connect with the air conveyor ,which can
directly inline with filling machine .
Specification of the raw material
| No | |
| 1 | Suitable material | pre-painted coil, galvanized coil, |
| 2 | Width of the raw material/ feeding width | 1000mm |
| 3 | cover width/ effective width | 720mm |
| 4 | Thickness | 0.5-1.2mm |
Machine paremeter
| No | 688 Floor Deck Roll Forming Machine |
| 1 | Dimensions (L*W*H) | 14500*1350*1300mm |
| 2 | Total power | Motor power-18.5kw Hydraulic power-4kw |
| 3 | Rows of rollers | 23 rows |
| 4 | Productivity | 10-12m/min |
| 5 | Diameter of shaft | 95mm |
| 6 | Voltage | 380V 50hz 3phases |
| 7 | Weight | 13.5t |
| 8 | Machine body | 450mm H beam |
| 9 | Middle plate | 22mm |
| 10 | Material of the rollers | Bearing steel with quenching treatment |
| 11 | Material of the shafts | 45# steel |
| 12 | Material of the cutting blade | Cr12 with quenching treatment |
Service
We have R&D centers and innovative designing teams for
different kinds of production lines.
We have independent QC departments both in the company and
factories which strictly control the quality of each process to
enable our production lines to reach Chinese National Standards,
even International Standards.
Warranty period 1 year , after this period , we are willing to give
help if customer needs accessory . The real cooperation will not
end at the delivery . we believe that satisfied after sale service
means a lot.
After completing the manufacturing and assembling of the
equipments, we will test the machines and commissioning in the
workshop.
After confirmation of a sound work of the line, we will invite our
customer to send their representatives to inspect the production
lines in our factories.
FAQ
1:How to play order:
Inquiry---confirm the profile drawings and price----confirm the
PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to
Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao
to Cangzhou Xi(4.5 hours),then we can pick up you.
If any questions,you can call me mobile phone at any
times:0086-13754536227
3. How about your quality and price?
Our machine uses the advanced technique, we are leading in this
field.Most of other roll forming machine factories, their boss are
students of our general manager. We always leads first in this
field. The quality is among the highest.But the price is not high,
it is low. Because our rich experience help us to do the highest
quality machine but with lowest cost.

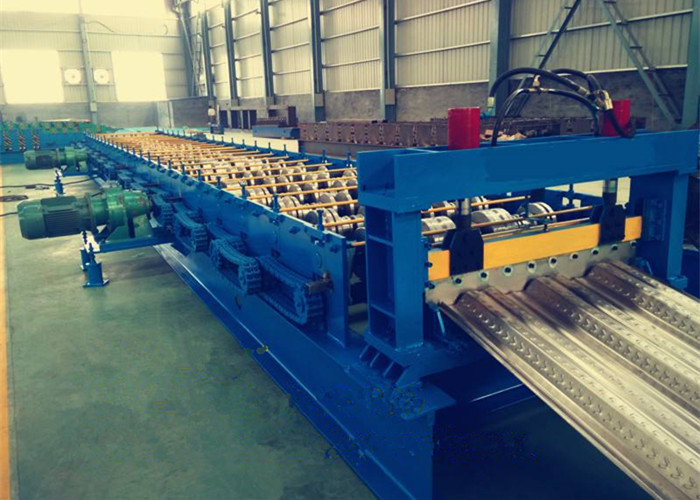

Machine shows
