GI Colored Steel Cold Roll Forming Machine With Electric Tile Cutting Machine

    Buy cheap GI Colored Steel Cold Roll Forming Machine With Electric Tile Cutting Machine from wholesalers

    Buy cheap GI Colored Steel Cold Roll Forming Machine With Electric Tile Cutting Machine from wholesalers
    • Buy cheap GI Colored Steel Cold Roll Forming Machine With Electric Tile Cutting Machine from wholesalers
    • Buy cheap GI Colored Steel Cold Roll Forming Machine With Electric Tile Cutting Machine from wholesalers

    GI Colored Steel Cold Roll Forming Machine With Electric Tile Cutting Machine

    Ask Lasest Price
    Certification : BV,SGS, CE,ISO9001
    Payment Terms : L/C, T/T
    Supply Ability : 30 SETS / MONTH
    Delivery Time : 30 Working days
    Price : Negotiation
    • Product Details
    • Company Profile

    GI Colored Steel Cold Roll Forming Machine With Electric Tile Cutting Machine

    New style Automatic Roof Ridge Cap Tile Cold Roll Forming Machine / Glazed Aluminum Metal Rib Roof Ridge Forming


    312 Ridge cap drawing
    GI Colored Steel Cold Roll Forming Machine With Electric Tile Cutting MachineGI Colored Steel Cold Roll Forming Machine With Electric Tile Cutting Machine

    Machine parameter

    Suitable steel plate


    TypeColor steel plate
    thickness0.3-0.8mm
    Feeding widthAs users needs
    Effective widthAs users needs
    Production speed8-12m/min
    Roller stand14 rows
    Diameter60mm
    Main power3kw
    Pump power3kw
    Side panel of machine14mm
    Roller materialCarbon Steel 45#
    Blade materialCr12, quenched
    Control systemPLC control
    Voltage380V 50Hz 3phases(changeable as needs)
    Main structure of the machine300mm H-Beam


    Component

    NO.ItemUnitQty
    1Manual decoilerset1
    2Main roll forming machineset1
    3PLC control boxset1
    4Supporter tableset1

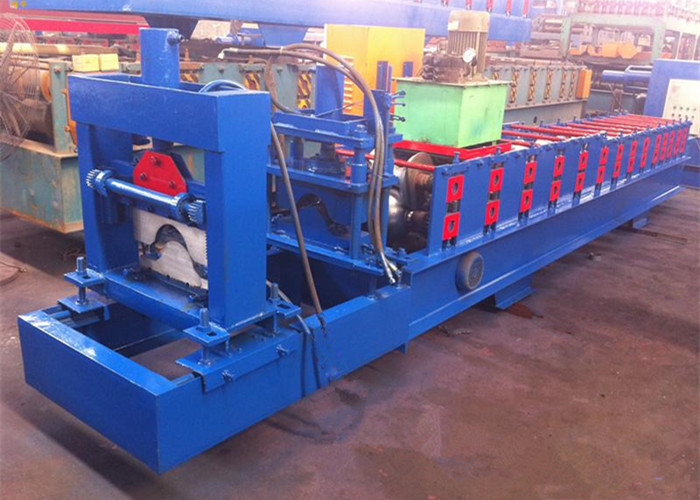

    Machine show
    GI Colored Steel Cold Roll Forming Machine With Electric Tile Cutting MachineGI Colored Steel Cold Roll Forming Machine With Electric Tile Cutting Machine

    FAQ

    1) Q: Do you have after sales support?
    A: Yes, we are happy to give advice and we also have skilled technicians available across the world
    We need your machines running in order to keep your business running.
    2)Q: How do your machines compare with other big companies in this market?
    A: We are up to date with the latest technology and improve our machines accordingly
    3) Q: Will you deliver the right goods as ordered? How can I trust you?
    A: Yes, we will. The core of our company culture is honesty and credit
    4)Q:What can you do if the machine broken?
    A:Our machine's warranty period is 18months,if the broken parts can't repair
    we can send the new parts replace the broken parts free,but you need pay the express cost yourself if after warranty period
    we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
    5) Q:Can you be responsible for transport?
    A:Yes,please tell me the destination port or address we have rich experience in transport.
    6) Q:Can you supply the raw materials?
    A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil
