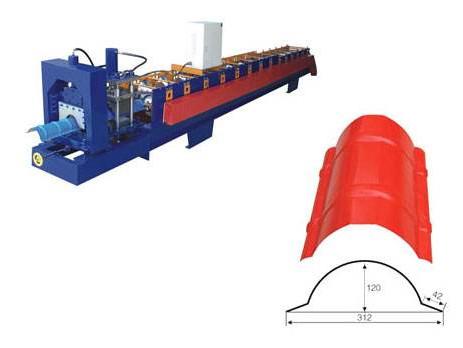

Steel Ridge Cap Roll Forming Machine , Sheet Metal Forming Equipment

    Buy cheap Steel Ridge Cap Roll Forming Machine , Sheet Metal Forming Equipment from wholesalers

    Buy cheap Steel Ridge Cap Roll Forming Machine , Sheet Metal Forming Equipment from wholesalers
    • Buy cheap Steel Ridge Cap Roll Forming Machine , Sheet Metal Forming Equipment from wholesalers

    Steel Ridge Cap Roll Forming Machine , Sheet Metal Forming Equipment

    Ask Lasest Price
    Brand Name : XINGHE
    Model Number : XH312
    Certification : BV,SGS, CE,ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 SETS / MONTH
    Delivery Time : 30 Working days
    • Product Details
    • Company Profile

    Steel Ridge Cap Roll Forming Machine , Sheet Metal Forming Equipment

    The ridge cap roll forming machine is a large roof tile equipment special floor plate equipment imported computer motherboard and relay, frequency converter, the production efficiency can reach 5-8m/min, and high rate of finished products. Roofing material is light, beautiful, environmental protection, waterproof, fireproof, sound insulation, etc..

    ridge cap roll forming machineTechnical parameters:
    1Cutting&Hydraulic typeDouble guide pillar
    2Hydraulic motor power4kw,4kw
    3Hydraulic Pressure10-12MPa
    4Voltage380V /3phase/ 50 HZ (or as your requirement)
    5Cutting driveDecelerating motor + Chain drive gear all by high-frequency
    6Control SystemPanasonic /Siemens / Schneider / Delta PLC
    7Length measurementEncoder
    8Main Frame300mm/350mm H-Beam or 350mm
    9Backboard Thickness17mm/200mm
    10Chain Size1inch/2inch
    11Feeding MaterialBetter as your drawing or from our designer
    12Feeding Thickness0.18mm-1.0mm
    13Effective widthBetter as your drawing or from our designer
    14Productivity5-8/min
    15Roll Station13ows& 14(according to different design)
    16Roller Diameter70mm/75mm(depend on different design)
    17Roller material45# steel
    18Cutter materialCr12 mould steel heat-treated hardness of HRC = 60-62 degrees
    19Total Weight2t-12t
    20Package of machineWaterproofing membrane, standard export packing
    21ridge cap roll forming machine of the Components

    Manual decoiler-------------------1 set(5t)

    Guiding Platform------------------1 set

    Coil Strip Leveler------------------1 set

    Main Machine of Roll Forming------1 set

    Hydraulic Station------------------1 set

    Supporter Table-------------------1 set

    Coil Strip Leveler------------------1 set

    23ridge cap roll forming machine machine technical parameters can be changed, according to customer's need.
