    Glazed 828 Step Tile Roof Panel Cold Roll Forming Mach / Roll Forming Equipment

    Ask Lasest Price
    Brand Name : XINGHE
    Model Number : XH828
    Certification : CE,ISO,TUV,BV
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 SETS / MONTH
    Delivery Time : 20 Working days
    • Product Details
    • Company Profile

    Glazed 828 Step Tile Roof Panel Cold Roll Forming Mach / Roll Forming Equipment

    Glazed 828 Step Tile Roof Panel Roll Forming Machine / Aluminum Profile Metal Roofing Tile Roll Forming Making Machine


    Specifications

    1.828Glazed roof tile roll forming machine

    2.Making according to your request
    3.CE certificate
    4.Year warranty

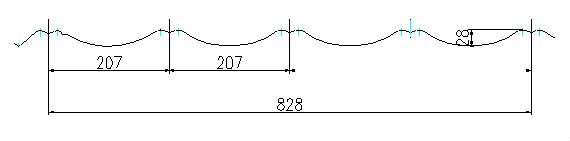

    A. Profile Drawing

    828 Glazed Steel Roof Tile Roll Forming Machine

    B. Glazed roof tile roll forming machine main Technical Parameter

    No.main parameter of Glazed Tile Roll Forming Machine
    1Suitable to processColor steel plate
    2Width of the plate1000mm
    3Rollers9rows
    4size5.8*1.45*1.51m
    5Main moter power4kw
    6Hydraulic unit power4kw
    7Thickness of the plate0.3-0.5mm
    8Productivity0-2m/min
    9Diameter of the rollerΦ70mm
    10Voltage380V 50Hz 3phases
    11Material of the cutting plateCr12
    12Control systemPLC control

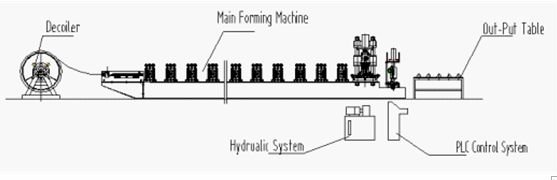

    C. Components

    Mechanic Uncoiler, Main Forming Machine, Post Cutting System, PLC Controlling System, Support Table


    D. Working Folow

    Passive Uncoiler-Guiding & Adjusting-Roll Forming-Cut to Length-Out to Support Table

    828 Glazed Steel Roof Tile Roll Forming Machine


    E, Warranty, Year warranty

    During the warranty period, maintain and change the spare parts for the customers for free (except for the instrument damage caused by human factors or natural disasters.) And provide technical support for life-long.


    The tiles produced by this Metal Glazed Steel Roof Tile Making Roll Forming Machine are widely used in all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency and reliable working.It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, high precision counter and so on.

    Metal Glazed Steel Roof Tile Making Roll Forming Machine Usage:Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
